- 編號：20101471
- 頻率：18MHz
- 尺寸：11.4×4.8mm
ECS晶振,ECS-180-18-5PXEN,6G低成本晶振
ECS晶振,CSM-7X無源晶振,ECS-180-18-5PXEN晶振,石英晶體諧振器,進口SMD晶振,頻率18MHz,負載18pF,工作溫度-40~85°C,頻率穩定性30ppm,無鉛環保晶振,高可靠性晶振,6G低成本晶振,智能手機晶振,平板電腦晶振,數字電表晶振...
.jpg)
ECS晶振,ECS-180-18-5PXEN,6G低成本晶振,ECS晶振,CSM-7X無源晶振,ECS-180-18-5PXEN晶振,石英晶體諧振器,進口SMD晶振,頻率18MHz,負載18pF,工作溫度-40~85°C,頻率穩定性30ppm,無鉛環保晶振,高可靠性晶振,6G低成本晶振,智能手機晶振,平板電腦晶振,數字電表晶振,兒童用游戲機晶振.
ECS晶振,ECS-180-18-5PXEN,6G低成本晶振特點：
•低成本SMD晶體的絕佳選擇
•低調
•行業標準封裝
•無鉛/符合RoHS標準
•低成本SMD晶體的絕佳選擇
•低調
•行業標準封裝
•無鉛/符合RoHS標準
.gif)

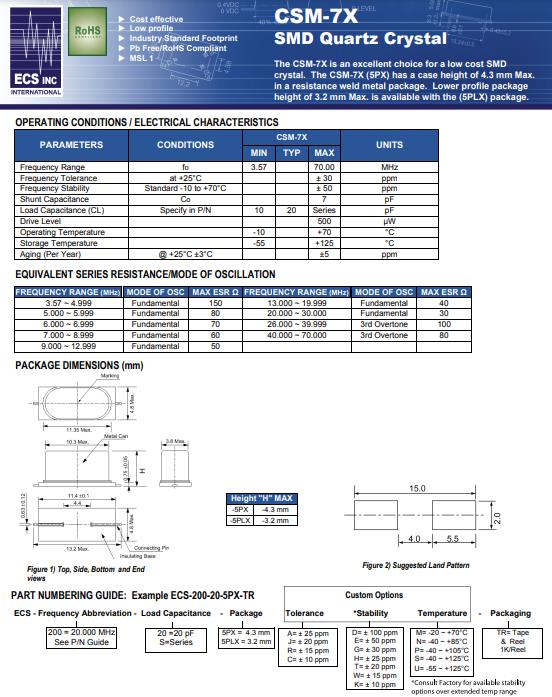

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振參數表
| 參數 | 條件 | CSM-7X |
| 頻率 | 18MHz | |
| 頻率公差 | at +25°C | ± 30PPM |
| 頻率穩定性 | -10°C to +70°C | ± 50PPM |
| 負載電容 | Specify in P/N | 18pF |
| 激勵功率 | DL | 500 μW Max |
| 工作溫度 |
Topr
|
-40°C to +85°C |
| 保存溫度 |
Topr
|
-55°C to +125°C |
| 并聯電容 |
Co
|
7.0 pF |
| 老化 | @ +25°C ±3°C | ±5ppm |
.gif)

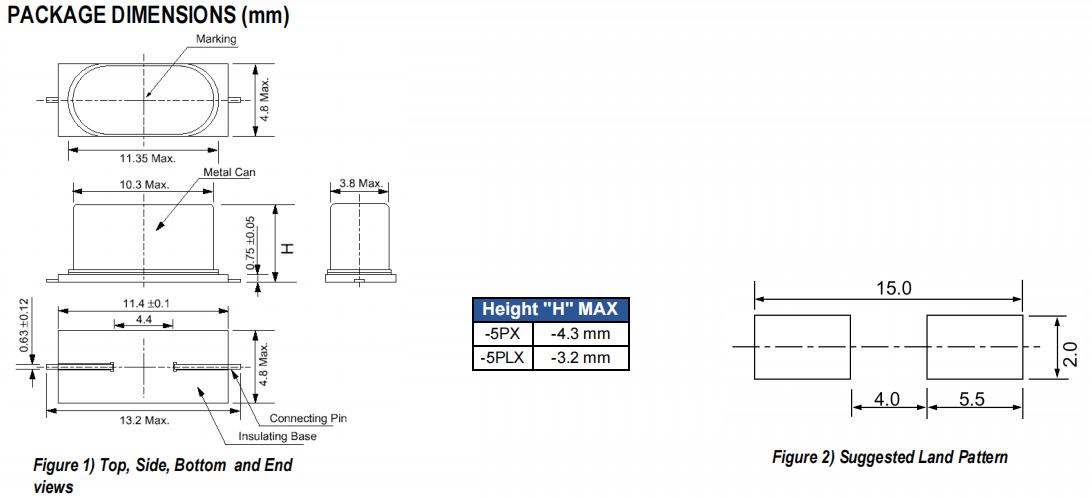

ECS晶振,ECS-180-18-5PXEN,6G低成本晶振尺寸圖
| ECS原廠編碼 | 型號 | 頻率 | 頻率偏差 | 負載電容 | 工作溫度 | 包裝 |
| ECS-100-18-5PX-TR | CSM-7X | 10MHz | ±30ppm | 18pF | -10°C ~ 70°C | HC49/US |
| ECS-100-S-5PX-TR | CSM-7X | 10MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-102.4-18-5PXEN | CSM-7X | 10.24MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-102.45-16-5PX-TR | CSM-7X | 10.245MHz | ±30ppm | 16pF | -10°C ~ 70°C | HC49/US |
| ECS-110.5-18-5PXEN-TR | CSM-7X | 11.0592MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-110.5-20-5PX-TR | CSM-7X | 11.0592MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-110.5-32-5PX-TR | CSM-7X | 11.0592MHz | ±30ppm | 32pF | -10°C ~ 70°C | HC49/US |
| ECS-110.5-S-5PX-TR | CSM-7X | 11.0592MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-110-18-5PXEN-TR | CSM-7X | 11MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-115.2-18-5PXEN | CSM-7X | 11.52MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-120.003-18-5PXEN | CSM-7X | 12.000393MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-120-18-5PX-TR | CSM-7X | 12MHz | ±30ppm | 18pF | -10°C ~ 70°C | HC49/US |
| ECS-120-32-5PX-TR | CSM-7X | 12MHz | ±30ppm | 32pF | -10°C ~ 70°C | HC49/US |
| ECS-120-S-5PX-TR | CSM-7X | 12MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-122.8-18-5PXEN-TR | CSM-7X | 12.288MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-122.8-20-5PX-TR | CSM-7X | 12.288MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-122.8-S-5PX-TR | CSM-7X | 12.288MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-135.6-12-5PX-TR | CSM-7X | 13.56MHz | ±30ppm | 12pF | -10°C ~ 70°C | HC49/US |
| ECS-135-18-5PXEN-TR | CSM-7X | 13.5168MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-143-18-5PXEN-TR | CSM-7X | 14.31818MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-143-20-5PX-TR | CSM-7X | 14.31818MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-143-S-5PX-TR | CSM-7X | 14.31818MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-147.4-18-5PXEN-TR | CSM-7X | 14.7456MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-147.4-20-5PX-TR | CSM-7X | 14.7456MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-147.4-S-5PX-TR | CSM-7X | 14.7456MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-150-18-5PXEN | CSM-7X | 15MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-150-S-5PX-TR | CSM-7X | 15MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-160.003-18-5PXEN-TR | CSM-7X | 16.000312MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-160.003-18-5PX-TR | CSM-7X | 16.000312MHz | ±30ppm | 18pF | -10°C ~ 70°C | HC49/US |
| ECS-160-18-5PXEN-TR | CSM-7X | 16MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-160-20-5PX-TR | CSM-7X | 16MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-160-S-5PX-TR | CSM-7X | 16MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-162.57-18-5PXEN-TR | CSM-7X | 16.257MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-163-18-5PXEN-TR | CSM-7X | 16.384MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-177.3-18-5PXEN | CSM-7X | 17.734475MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-180-18-5PXEN | CSM-7X | 18MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-180-S-5PX-TR | CSM-7X | 18MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-184-18-5PX-TR | CSM-7X | 18.432MHz | ±30ppm | 18pF | -10°C ~ 70°C | HC49/US |
| ECS-184-S-5PX-TR | CSM-7X | 18.432MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-196.6-18-5PXEN-TR | CSM-7X | 19.6608MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-196.6-20-5PX-TR | CSM-7X | 19.6608MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-200-16-5PX-TR | CSM-7X | 20MHz | ±30ppm | 16pF | -10°C ~ 70°C | HC49/US |
| ECS-200-18-5PXEN-TR | CSM-7X | 20MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-200-20-5PX-TR | CSM-7X | 20MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-200-S-5PX-TR | CSM-7X | 20MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-204.8-20-5PX | CSM-7X | 20.48MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-221-18-5PXEN-TR | CSM-7X | 22.1184MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-240-12-5PX-TR | CSM-7X | 24MHz | ±30ppm | 12pF | -10°C ~ 70°C | HC49/US |
| ECS-240-16-5PX-TR | CSM-7X | 24MHz | ±30ppm | 16pF | -10°C ~ 70°C | HC49/US |
| ECS-240-18-5PXEN-TR | CSM-7X | 24MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-240-20-5PX-TR | CSM-7X | 24MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-245.7-18-5PXEN-TR | CSM-7X | 24.576MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-245.7-20-5PX-TR | CSM-7X | 24.576MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-250-18-5PX-F-TR | CSM-7X | 25MHz | ±30ppm | 18pF | -10°C ~ 70°C | HC49/US |
| ECS-251.75-18-5PX-EN-TR | CSM-7X | 25.175MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-270-18-5PX-F-TR | CSM-7X | 27MHz | ±30ppm | 18pF | -10°C ~ 70°C | HC49/US |
| ECS-286.3-18-5PX-F-EN-TR | CSM-7X | 28.63636MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-320-18-5PXEN | CSM-7X | 32MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-35-17-5PX-TR | CSM-7X | 3.579545MHz | ±30ppm | 17pF | -10°C ~ 70°C | HC49/US |
| ECS-35-18-5PXEN-TR | CSM-7X | 3.579545MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-35-S-5PX-TR | CSM-7X | 3.579545MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-36-18-5PXEN-TR | CSM-7X | 3.6864MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-36-20-5PX-TR | CSM-7X | 3.6864MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-36-S-5PX-TR | CSM-7X | 3.6864MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-40.3-18-5PXEN | CSM-7X | 4.032MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-40.3-20-5PX-TR | CSM-7X | 4.032MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-40.3-S-5PX-TR | CSM-7X | 4.032MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-400-18-5PXEN | CSM-7X | 40MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-40-18-5PXEN-TR | CSM-7X | 4MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-40-20-5PX-TR | CSM-7X | 4MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-40-S-5PX-TR | CSM-7X | 4MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-41-18-5PXEN-TR | CSM-7X | 4.096MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-41-20-5PX-TR | CSM-7X | 4.096MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-42-12-5PX-TR | CSM-7X | 4.194304MHz | ±30ppm | 12pF | -10°C ~ 70°C | HC49/US |
| ECS-42-16-5PX-TR | CSM-7X | 4.194304MHz | ±30ppm | 16pF | -10°C ~ 70°C | HC49/US |
| ECS-42-18-5PXEN-TR | CSM-7X | 4.194304MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-44-20-5PX-TR | CSM-7X | 4.433618MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-480-18-5PXEN | CSM-7X | 48MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-480-20-5PX-TR | CSM-7X | 48MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-491.5-18-5PXEN | CSM-7X | 49.152MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-49-18-5PXEN-TR | CSM-7X | 4.9152MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-49-20-5PX-TR | CSM-7X | 4.9152MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-49-S-5PX-TR | CSM-7X | 4.9152MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-500-18-5PXEN | CSM-7X | 50MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-50-18-5PXEN-TR | CSM-7X | 5MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-50-20-5PX-TR | CSM-7X | 5MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-50-S-5PX-TR | CSM-7X | 5MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-51-18-5PXEN-TR | CSM-7X | 5.0688MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-51-20-5PX-TR | CSM-7X | 5.0688MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-52-32-5PX-TR | CSM-7X | 5.185MHz | ±30ppm | 32pF | -10°C ~ 70°C | HC49/US |
| ECS-59.9-20-5PX-TR | CSM-7X | 5.9904MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-60-18-5PXEN-TR | CSM-7X | 6MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-60-20-5PX-TR | CSM-7X | 6MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-60-32-5PX-TR | CSM-7X | 6MHz | ±30ppm | 32pF | -10°C ~ 70°C | HC49/US |
| ECS-60-S-5PX-TR | CSM-7X | 6MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-61-18-5PXEN-TR | CSM-7X | 6.144MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-61-32-5PX-TR | CSM-7X | 6.144MHz | ±30ppm | 32pF | -10°C ~ 70°C | HC49/US |
| ECS-65-18-5PXEN | CSM-7X | 6.5MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-73-18-5PXEN-TR | CSM-7X | 7.3728MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-73-20-5PX-TR | CSM-7X | 7.3728MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-73-S-5PX-TR | CSM-7X | 7.3728MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-76.8-18-5PXEN-TR | CSM-7X | 7.68MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-80-18-5PX-TR | CSM-7X | 8MHz | ±30ppm | 18pF | -10°C ~ 70°C | HC49/US |
| ECS-80-20-5PX | CSM-7X | 8MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-80-32-5PX-TR | CSM-7X | 8MHz | ±30ppm | 32pF | -10°C ~ 70°C | HC49/US |
| ECS-80-S-5PX-TR | CSM-7X | 8MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-92.1-20-5PX-TR | CSM-7X | 9.216MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-92.1-S-5PX-TR | CSM-7X | 9.216MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-98.3-18-5PXEN-TR | CSM-7X | 9.8304MHz | ±30ppm | 18pF | -40°C ~ 85°C | HC49/US |
| ECS-98.3-20-5PX-TR | CSM-7X | 9.8304MHz | ±30ppm | 20pF | -10°C ~ 70°C | HC49/US |
| ECS-98.3-S-5PX-TR | CSM-7X | 9.8304MHz | ±30ppm | Series | -10°C ~ 70°C | HC49/US |
| ECS-80-18-5PXDS-TR | CSM-7X | 8MHz | ±30ppm | 18pF | -40°C ~ 125°C | HC49/US |
